Record Service

This service is where to receive audio files from providers, store it to provide webphone-service and other services in the system.

I. Functionality​

  • Get records from providers and update record url in call log
  • Store and provide record files
  • Upload record to digital ocean space
  • Authorize via a username and a password, exemplifying Basic Access Authentication

1. syncRecord cron​

  • This cron use Rsync to get mp3 files from each pbx and save mp3 files in record directory

2. updateLink cron​

  • This cron search and update empty recordUrl of connected calllogs

  • This cron have two Modes

    RECORD_MODE = 1, This mode search for all connected calllogs which have empty recordUrl in 24 hours then update recordUrl ( Digital Ocean Link )

    RECORD_MODE = 2, This mode search for all connected calllogs then update mp3 link from digital ocean

3. uploadRecord cron​

  • This cron upload all mp3 files in record directory to Digital Ocean then delete all uploaded files

4. Daily/ Monthy/ Weekly Cron​

  • This Cron export all calllog info in Dayly/Weekly/ Monthy to exel then send to customer by using smtp

II. Packages​

1. Dependencies​

  • @ffmpeg-installer/ffmpeg - Platform independent binary installer of FFmpeg for node projects @ffmpeg-installer/ffmpeg
  • Await-to-js - Async await wrapper for easy error handling Await-to-js
  • Aws-sdk - AWS SDK for JavaScript in Node.js Aws-sdk
  • Axios - Promise based HTTP client for the browser and node.js Axios
  • Babel-polyfill - Provides polyfills necessary for a full ES2015+ environment Babel-polyfill
  • Babel-preset-es2015 - Babel preset for all es2015 plugins Babel-preset-es2015
  • Babel-preset-stage-0 - Babel preset for stage 0 plugins Babel-preset-stage-0
  • Babel-register - Babel require hook Babel-register
  • Bluebird - Full featured Promises/A+ implementation with exceptionally good performance Bluebird
  • Body-parser - Node.js body parsing middleware Body-
  • Child_process - The child_process module provides the ability to spawn child processes in a manner that is similar, but not identical, to popen(3) Child_process
  • Crom - A simple cron-like job scheduler for Node.js Crom
  • Cron - Cron is a tool that allows you to execute something on a schedule Cron
  • Dotenv - Dotenv is a zero-dependency module that loads environment variables from a .env file into process.env Dotenv
  • Express - Fast, unopinionated, minimalist web framework for node Express
  • Fluent-ffmpeg - A fluent API to FFMPEG Fluent-ffmpeg
  • Formidable - A Node.js module for parsing form data, especially file uploads Formidable
  • Jsonfile - Easily read/write JSON files Jsonfile
  • Mongodb - The official MongoDB driver for Node.js Mongodb
  • Morgan - HTTP request logger middleware for node.js Morgan
  • Nodemailer - Send e-mails from Node.js Nodemailer
  • Objects-to-csv - Convert objects into CSV format Objects-to-csv
  • Split-file - Split a file into multiple chunks Split-file
  • Ssh-exec - SSH execution commands Ssh-exec
  • Winston - A logger for just about everything Winston
  • Zip-a-folder - Zip a folder and its contents Zip-a-folder

2. Dev dependencies​

  • Nodemon - Simple monitor script for use during development of a node.js app Nodemon

III. Database​

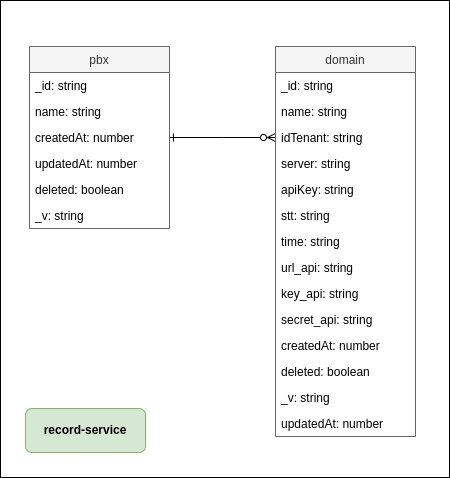

1. ERD​

ERD record-service

2. Database schema​

Pbx provides information of a contact. Indeed, every call center has a distinct collection to store their contacts. The collection names follow the format contact_idCallcenter

FieldTypeDescription
_idstringUnique identity string
namestringFirst name of the contact
createdAtint64Timestamp of the document creation, in number of milliseconds since Unix epoch
updatedAtint64Timestamp of the last update, in number of milliseconds since Unix epoch
deletedbooleanStatus of visibility
_vstringSchema version

Domain provides information of a contact. Indeed, every call center has a distinct collection to store their contacts. The collection names follow the format contact_idCallcenter

FieldTypeDescription
_idstringUnique identity string
namestringFirst name of the contact
idTenantstringTenant Id
serverstringServer address
apiKeystringAPI key
sttstringStatus domain
timestring
url_apistring
key_apistring
secret_apistring
createdAtint64Timestamp of the document creation, in number of milliseconds since Unix epoch
updatedAtint64Timestamp of the last update, in number of milliseconds since Unix epoch
deletedbooleanStatus of visibility
_vstringSchema version

IV. Source Tree​

├── .babelrc
├── .pbx-env                                ## Multi Pbx
│   ├── gc03.env
│   └── gc04.env
├── API.md
├── config
│   ├── access.js
│   ├── authorization.js
│   ├── aws.js
│   ├── credentials.js
│   ├── host.js
│   ├── mongodb.js
│   ├── pbx.js
│   └── pbxlog.js
├── external-api                            ## Tel4 API
│   └── tel4vn.js
├── index.js
├── lib
│   ├── access.js
│   ├── logger.js
│   ├── monthlyRecord.js
│   ├── record.js
│   ├── schedule.js
│   ├── syncRecord.js
│   ├── updateLink.js
│   └── uploadRecord.js
├── middleware
│   └── authorization.js
├── model
│   ├── domain.js
│   └── pbx.js
├── package.json
├── route
│   ├── domain.js
│   ├── pbx.js
│   ├── record.js
│   └── v1
│       ├── domain.js
│       ├── index.js
│       ├── pbx.js
│       └── record.js
├── server.js
├── sourcetree.js
└── template
    └── monthlyRecord.html

V. Installation​

1. Install dependencies​

1.1 Install ffmpeg​

// For Ubuntu 16.04
sudo apt-get update
sudo apt-get upgrade
sudo apt-get install ffmpeg

1.2. Install project​

  • Clone project:
git clone https://gitlab.com/gcalls-opensource/gcallsback.git
  • Change dir into recordService folder
cd recordService
  • Install packages:
npm install

  • Start service:

    • run in development

      npm run dev
      • run in production
      npm install -g pm2
      npm start

VI. Endpoint​

Please visit API documentation for more details
